DCT 800 VTL

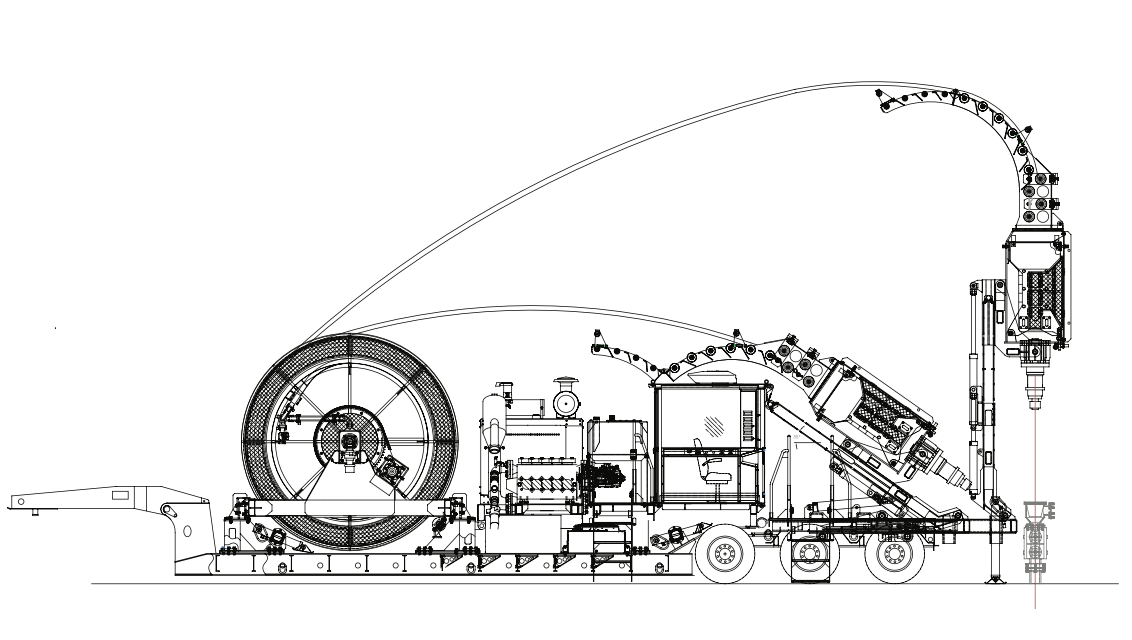

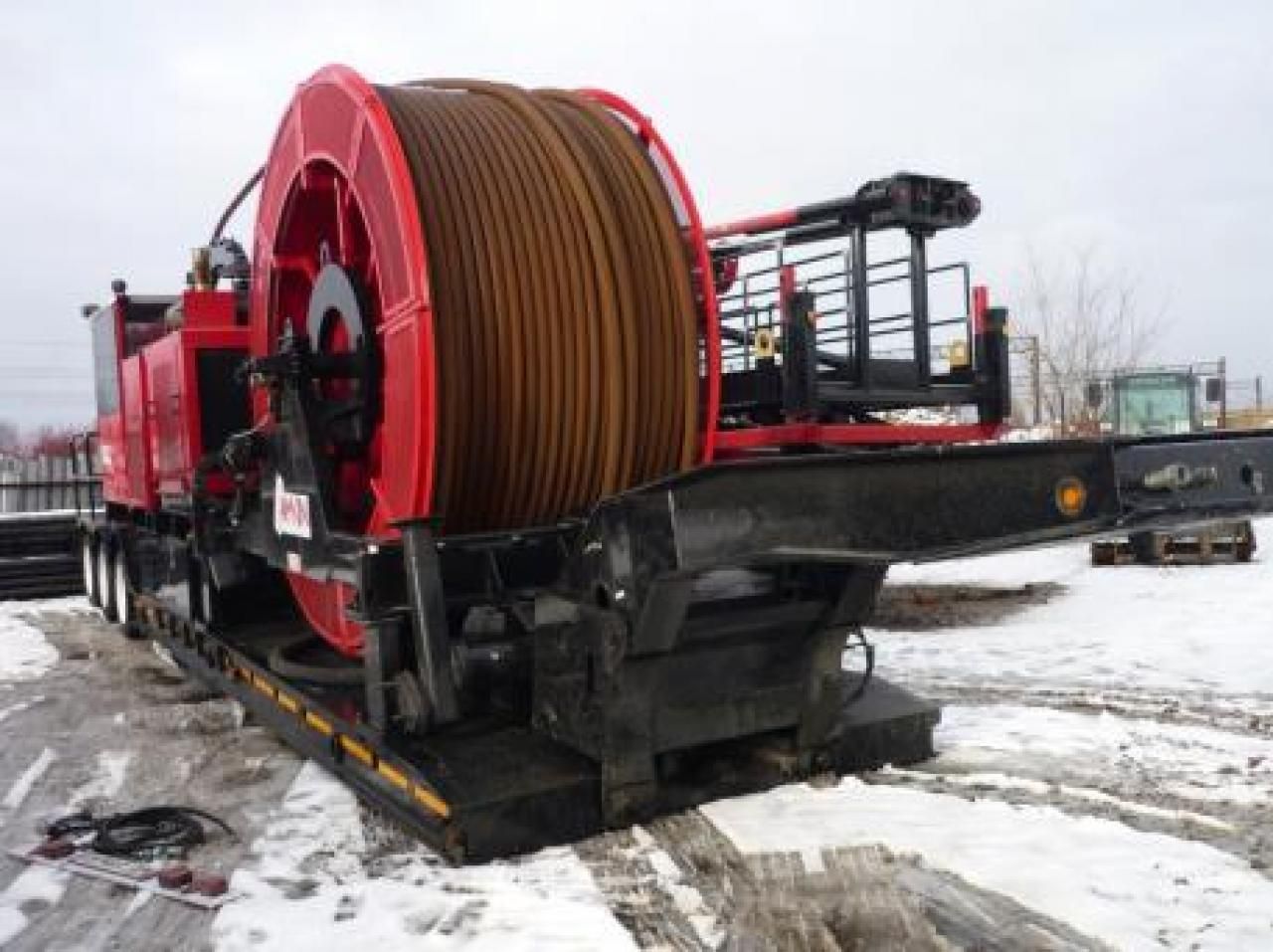

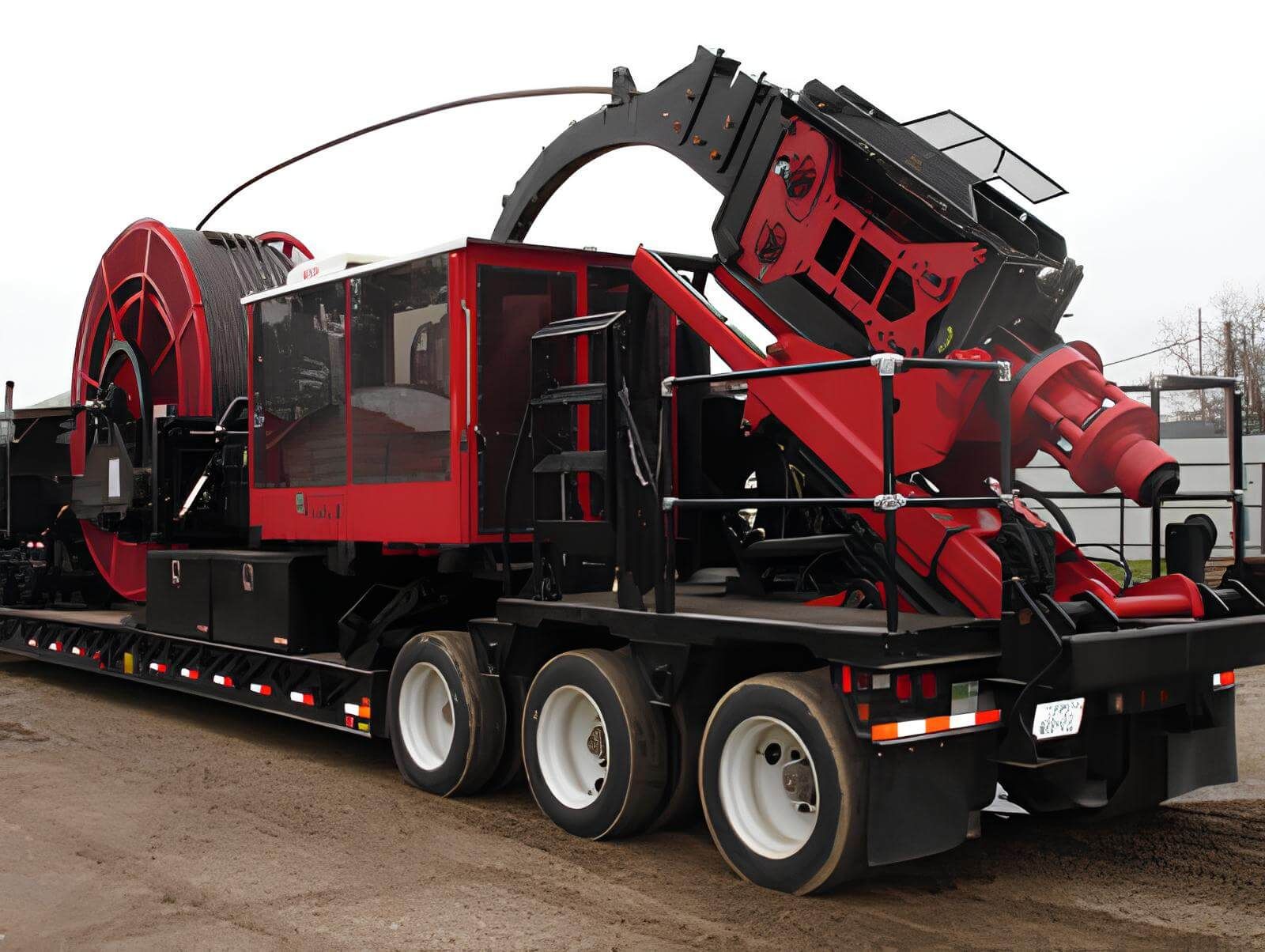

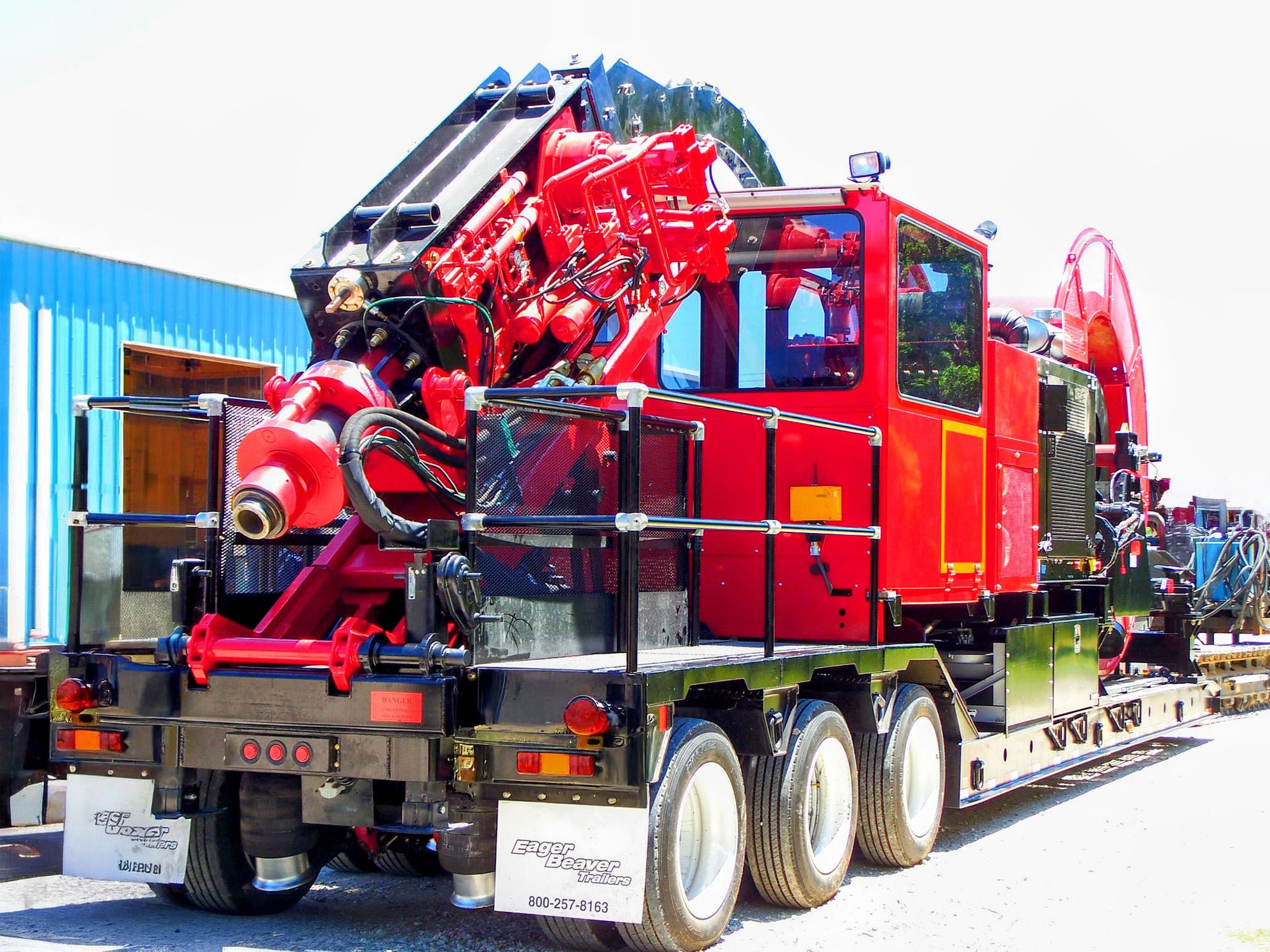

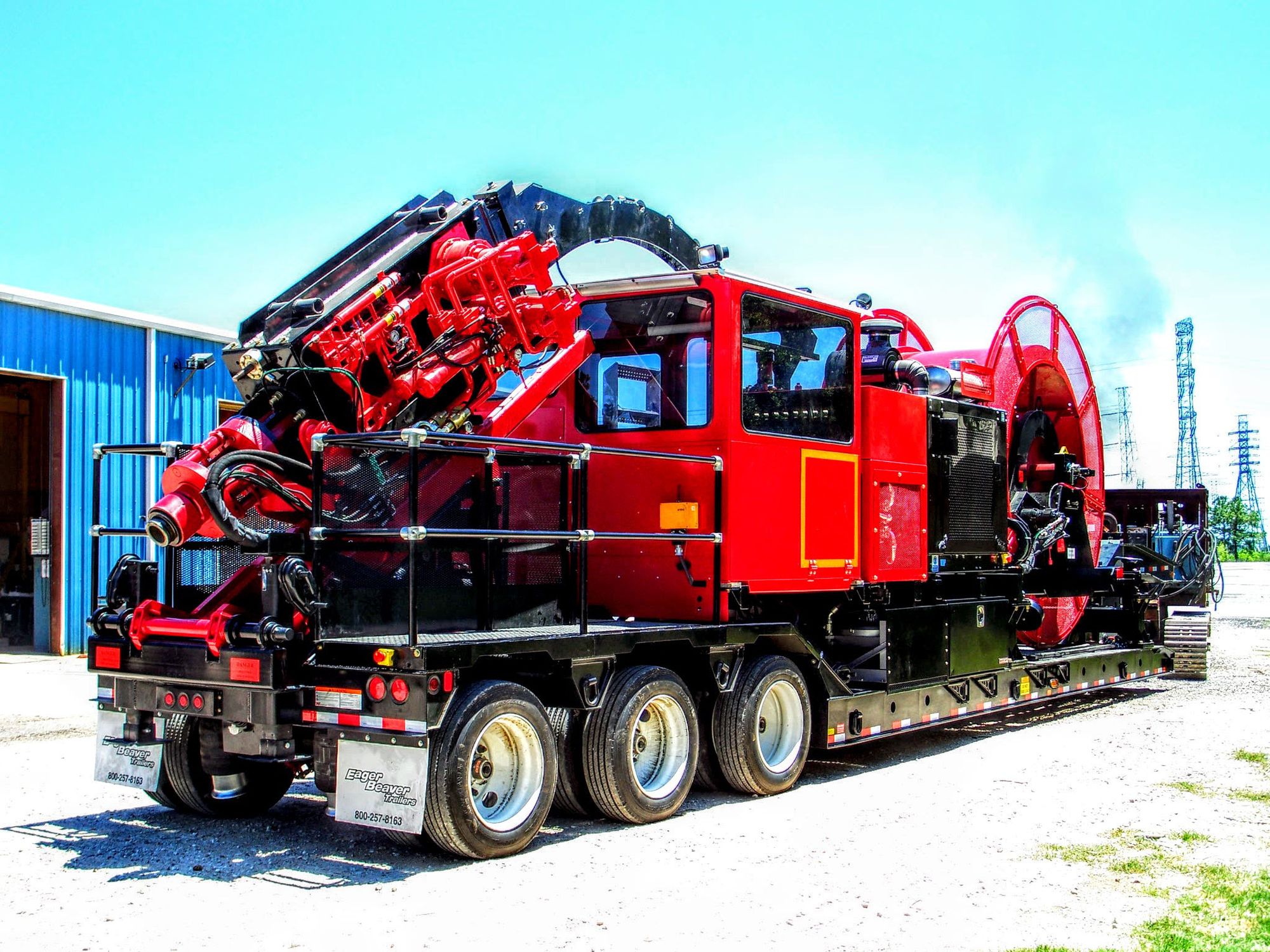

A trailerized unit complete with an on-board mud pump, enclosed cabin, radio control setup and variable position mast.

DCT 800 VTL

Introducing the 800 VTL Trailerized Drilling Unit: Your Ultimate Solution for Low-Pressure Shallow Depth Wells and Directional Drilling

Explore the cutting-edge features of our 800 VTL trailerized drilling unit, meticulously designed to meet your specific needs. This self-contained, highly mobile unit boasts a range of functionalities, making it the ideal choice for various drilling applications.

Experience the unparalleled performance of the 800 VTL, featuring an elite 80,000-pound capacity injector head, fluid swivels, and a CT stripper. Our unit is also compatible with CT drilling Orienters, including the AmKin Orienter, ensuring seamless integration with your existing drilling setup.

Choose innovation, mobility, and efficiency - choose the 800 VTL for your drilling needs.

Download PDF

Features

  • Easy Setup: Streamline your operations with our user-friendly setup, ensuring efficiency from the start.
  • Highly Mobile: Enjoy the flexibility of a trailer-mounted unit, providing mobility to tackle diverse drilling environments.
  • On-Board Mud Pump: Equipped with a powerful on-board mud pump, the 800 VTL ensures optimal drilling performance.
  • Self-Contained: Experience convenience with a fully enclosed AC cabin, providing a comfortable and controlled environment for your drilling operations.
  • Automated Levelwind: Enhance precision and reduce manual efforts with our automated levelwind system.
  • Workover Capabilities: The 800 VTL is designed for versatility, offering workover capabilities to meet a range of drilling challenges.
  • Stowable Telescopic Mast: Benefit from a variable position mast that can be easily stowed, providing adaptability in various drilling scenarios.
  • Optional Onboard Pump: Customize your unit with the optional onboard pump, tailoring the system to your specific requirements.

Technical Data

Injector Head: PUSH/PULL Rating Thrust (pull down) 40,000 lb Pullback (lift) 80,000 lb
Power Plant: Deutz Diesel QSB
Fluids: 82 gal Hydraulic Tank 140 gal Diesel Tank
Reel Capacity: 4000 + ft 2.875 in. 5000 + ft 2.625 in. 6000 + ft 2.375 in. Others available
Fluid System: Onboard Triplex Pump Option - Typical 350 hp High pressure swivel
Overall Dimensions: Drill Angle: deg 45 - 90 Length: ~47 ft. Width: 8 ft 6 in. Height: 13 ft 6 in. (Final travel height is dependent on customer setup)
